Mini-Refinery

Mini refinery with production capacity from 10 to 500 thousand tons per year is used for primary processing of oil and gas condensate.

After processing you will receive:
- straight-run gasoline
- wide fraction of solvents
- straight-run diesel fuel
- furnace fuel oil

Buy mini refinery equipment

Refining is carried out by continuous rectification of hydrocarbon raw materials. The process takes place in rectification columns with mass-exchange nozzles. This allows to achieve high efficiency and productivity, increases the service life of the equipment.

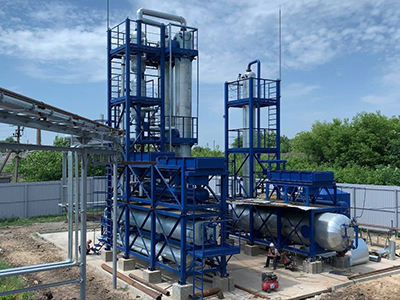

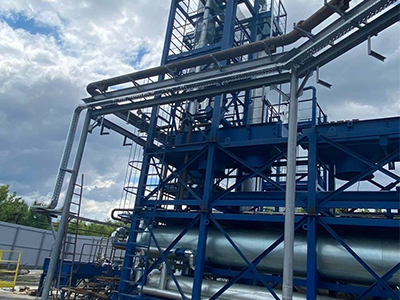

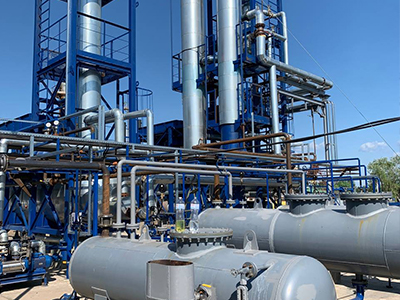

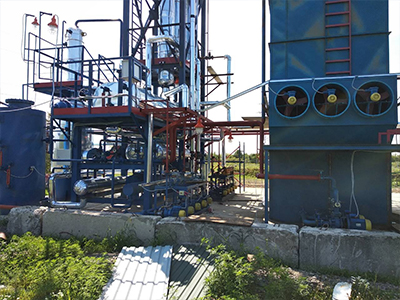

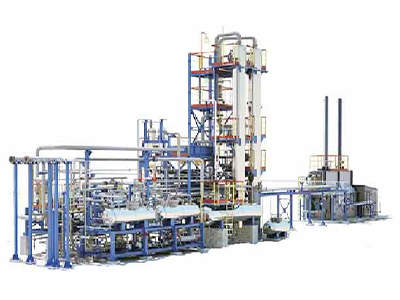

Mini refinery equipment for the plant is made as easily assembled block-modular structures. As a result, the plant is easy to install and commissioning, quickly starts to produce. The design consists of the following blocks (types of equipment at the refinery):

- heat exchangers - heat the feedstock and cool the finished petroleum product;
- condensers - condense vapors of light oil products;
- column block of K-1 and K-2 type, where rectification takes place;
- coolers - condense hydrocarbon vapors, cool fractions of light oil products and fuel oil;
- evaporator: evaporates residual gasoline fractions from diesel fuel, regulates flash point of diesel fuel;
- evaporation column - stabilizes raw materials, creates a stock of stripped product for further processing
- process pumps - feed raw materials to the unit, move raw materials and finished products within the unit, pump petroleum products out of the unit.

Mini oil refineries to buy, turnkey equipment, prices

Design features, dimensions and equipment of the units facilitate convenient transportation, provide quick and trouble-free installation, allow easy repair and maintenance work.

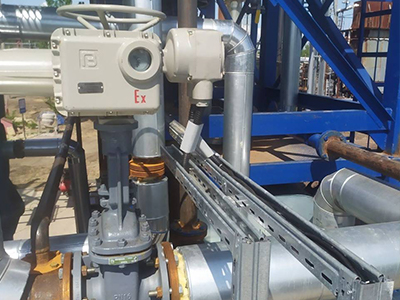

The units are equipped with an automated control system, which provides:

- qualitative control of production processes;

- simple operation;

- emergency protection;

- environmental control;

- analysis of equipment condition and prevention of emergency situations;

- shutdown of production in case of a dangerous or emergency situation;

- possibility of accident-free start-up, shutdown and regulation of technological modes;

- issuance of reports on the operating status of the unit.

Modular mini refinery to order

Our company has experience in the production of standard and non-standard mini-refineries for the needs and requirements of the customer.

We will manufacture the equipment based on the customer's individual technical project or individual technical specifications.
